Braided Tube only used for DSA/CathLab Injection System
1200psi High-pressure Straight Braided Patient Tubing with One valve for Angio | Cathlab Injectors
Description
Application
Used with Angiography contrast media injectors to deliver the medicine ( Contrast Agents & NaCl Normal Saline), enhance scanning images, and facilitate doctors to observe and locate lesions more accurately.
Features
Shape: Straight
Tube Material: TPU, Braided Net, PC
Connector: 6/100 Luer Lock, Including Female, Male lock connector.
ID: 1.8±0.05mm
OD: 3.65±0.05mm
Length: 1000mm/1200mm/1500mm/1800mm
Working MAX Pressure: 83Bar/1200psi

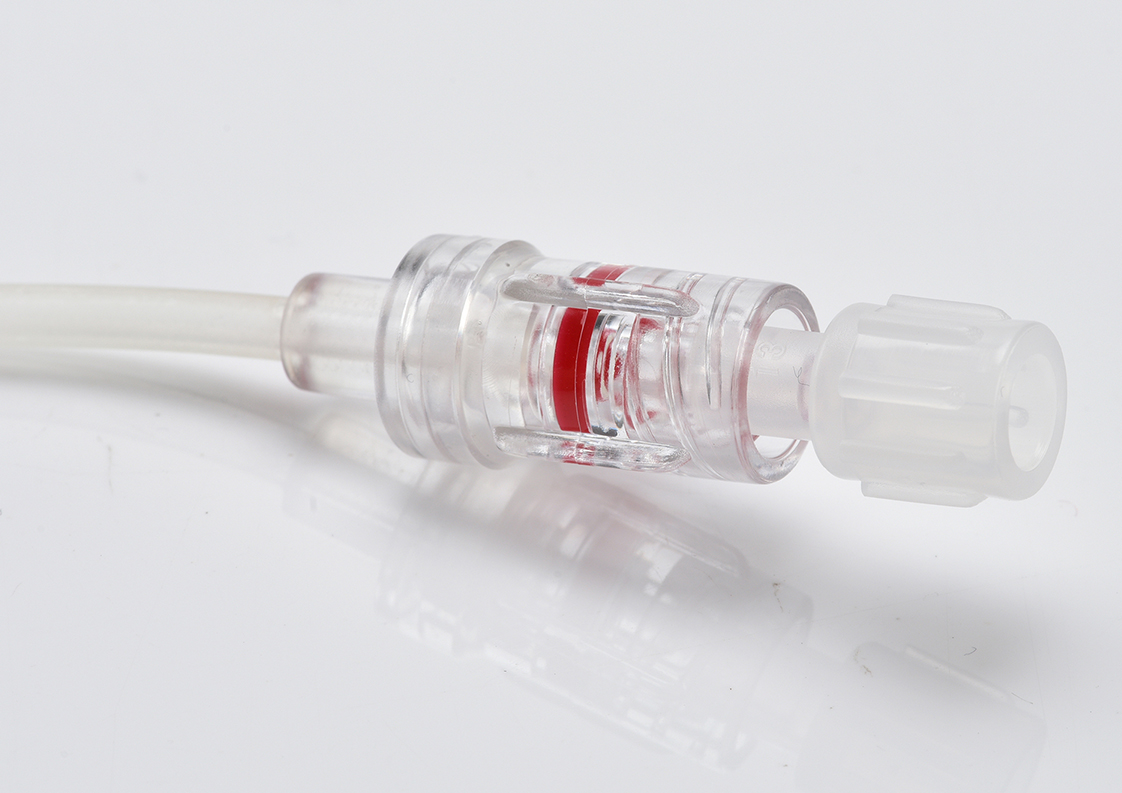

Valve: One Check Valve–Prevent Backflow of Contrast Agent and Saline
Shelf Life: 3 years
Certification
- CE
- ISO 13485
- FDA-US
