P/N 800101

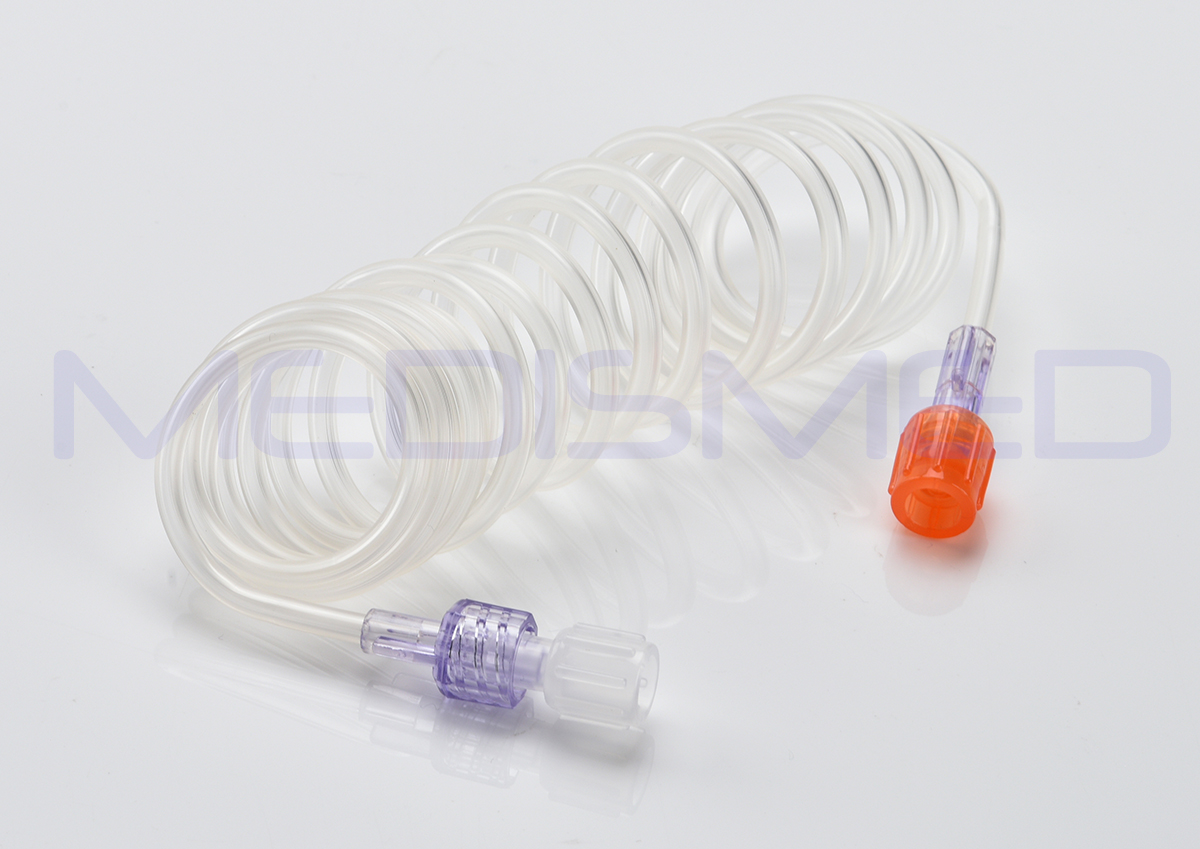

1500mm(60 inch) Coiled Tubing
P/N 800101
1500mm(60 inch) Coiled Tubing
Application
Used with CT contrast media injectors to deliver the medicine ( Contrast Agents & NaCl Normal Saline), enhance scanning images, and facilitate doctors to observe and locate lesions more accurately.
Features
Shape: Spiral ( Straight Option)
Tube Material: PVC / PVC -Free DEHP
Connector: 6/100 Luer Lock, Including Female, Male lock connector.
ID: 1.8±0.05mm
OD: 3.25±0.05mm
Length:
1500mm/60inch
(1800mm Option)
Working MAX Pressure: 24Bar/350psi
Valve: Without Check Valve
(One Check Valve Option–Prevent Backflow of Contrast Agent and Saline )
Shelf Life: 3 years
Certification
Download
product datasheet–60inch 800101 Coiled Tube
