P/N 800103

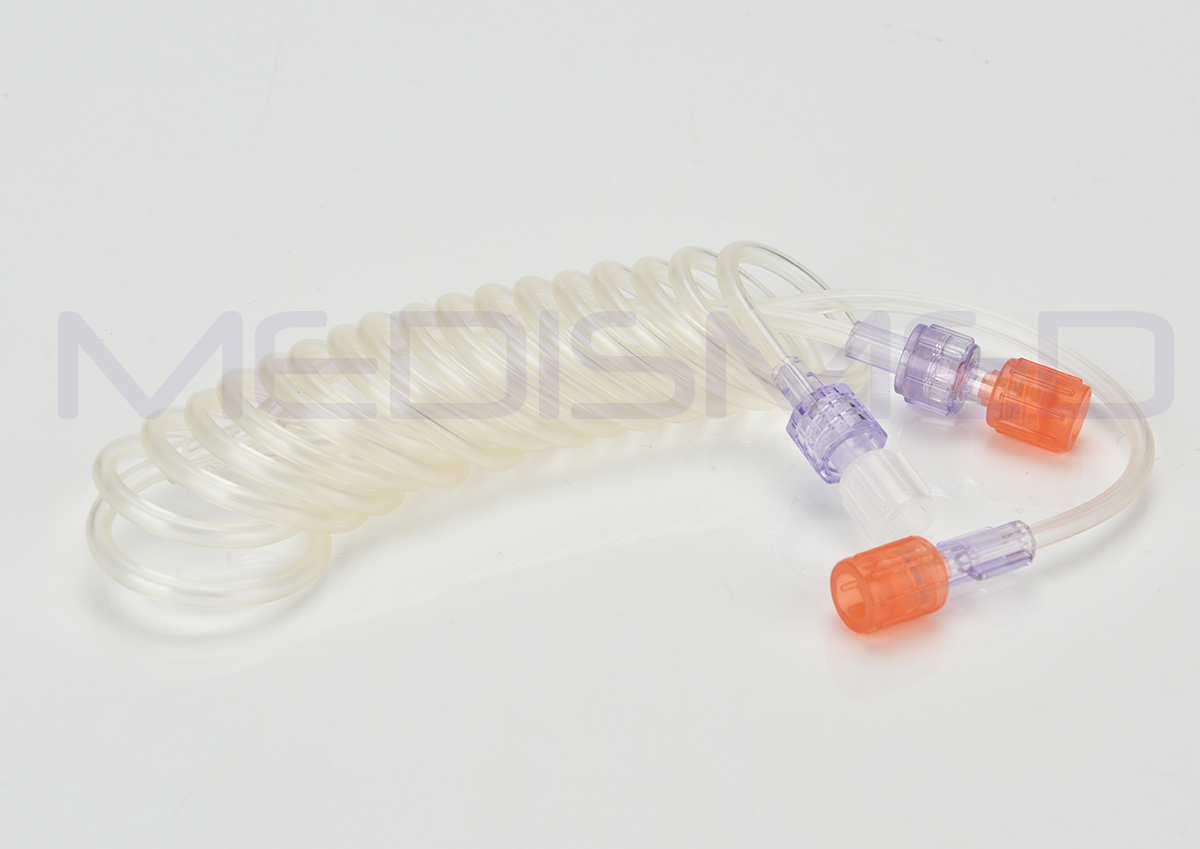

MRI 2500mm (96 inch) Spiral Y Extension Line with Check Valve
Disposable 350psi 2500mm (96 inch) Y Connector Curly Tubing with Dual Check Valves for CT Injection
Description
Application
Used with CT MRI contrast media injectors to deliver the medicine ( Contrast Agents & NaCl Normal Saline), enhance scanning images, and facilitate doctors to observe and locate lesions more accurately.
Features
Shape: Coiled ( Straight Option)
Tube Material: PVC / PVC -Free DEHP
Connector: 6/100 Luer Lock, Including Female, Male lock connector.
ID: 1.8±0.05mm
OD: 3.25±0.05mm
Length: 2500mm/96inch
( 100mm /300mm Option)
Working MAX Pressure: 24Bar/350psi
Valve: One Check Valve
(Dual Check Valves Option–Prevent Backflow of Contrast Agent and Saline)
Shelf Life: 3 years
Certification
- CE
- ISO 13485
- FDA-US
Download
product datasheet –800102 800103 Y connector with check valve
