P/N 800102
1500mm(60 inch) Y Extension Line with check valve for CT Injection

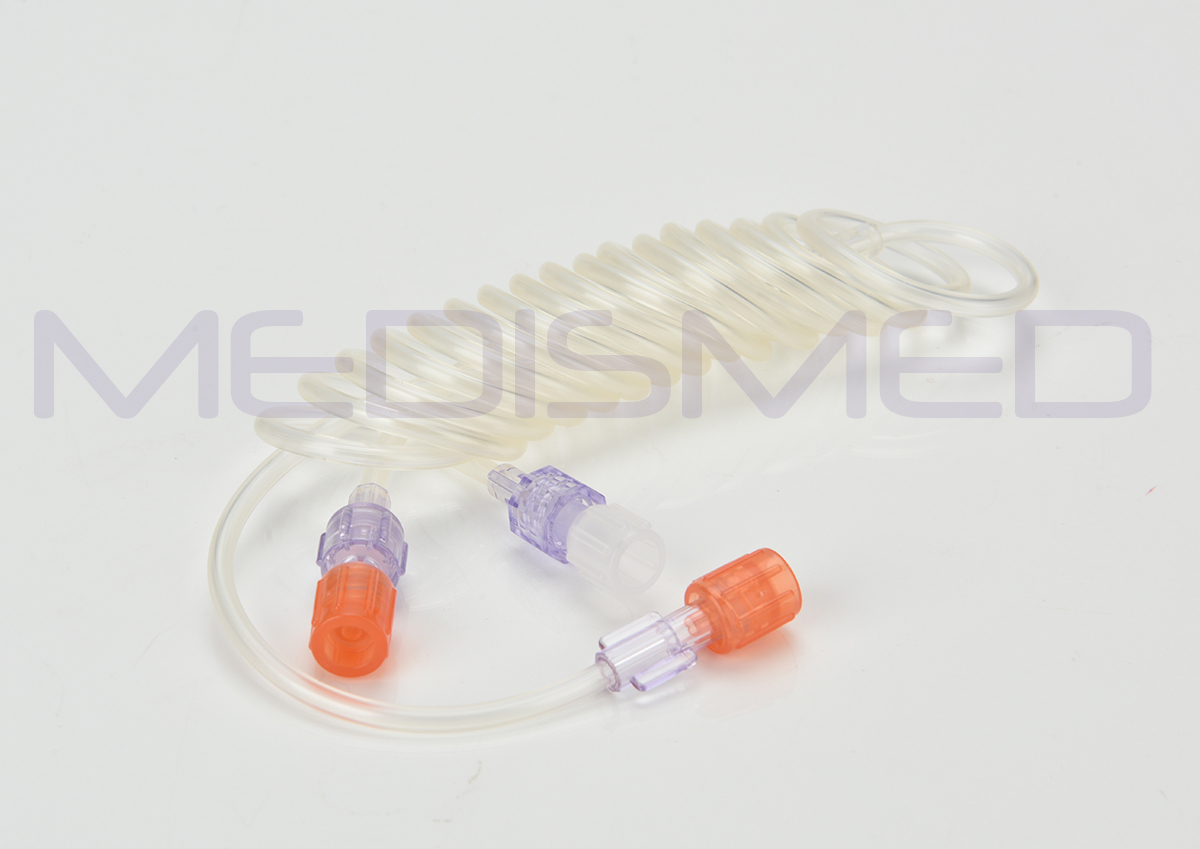

ZY5154 CT 1500mm (60 inch) Low Pressure Spiral Y Tubing with Dual Check Valve
Description
Application
Used with CT contrast media injectors to deliver the medicine ( Contrast Agents & NaCl Normal Saline), enhance scanning images, and facilitate doctors to observe and locate lesions more accurately.
Features
Shape: Coiled ( Straight Option)
Tube Material: PVC / PVC -Free DEHP
Connector: 6/100 Luer Lock, Including Female, Male lock connector.
ID: 1.8±0.05mm
OD: 3.25±0.05mm
Length: 1500mm/60inch
( 100mm /300mm Option)
Working MAX Pressure: 24Bar/350psi
Valve: One Check Valve (Dual Check Valves Option–Prevent Backflow of Contrast Agent and Saline)
Shelf Life: 3 years
Certification
- CE
- ISO 13485
- FDA-US
Download
product datasheet –800102 800103 Y connector with check valve
